起源の場所:
中国の東guan
ブランド名:
Fangsheng
証明:
ISO9001:2015,IATF16949,RoHS,Reach,etc
モデル番号:
fs-tft

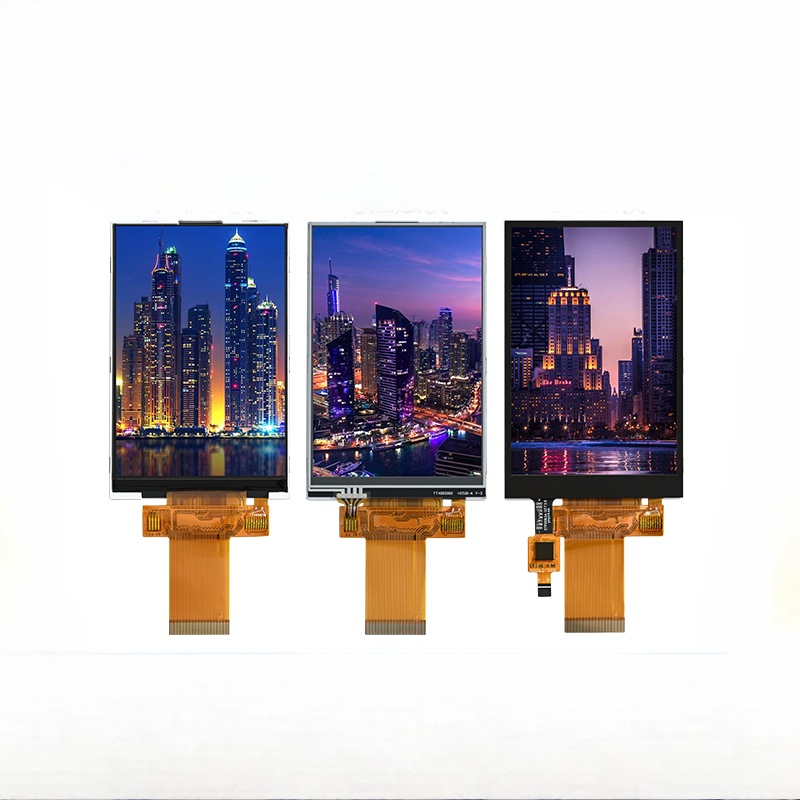

Custom TFT LCD displays are designed to meet specific size, resolution, brightness, interface and touch requirements, widely used in industrial control, medical devices, automotive and consumer electronics.
| Model Spec | Display 1 | Display 2 |
|---|---|---|
| Size | 3.5 inch | 2.4 inch |
| Resolution | 320 x 240 | 240 x 320 |
| Interface | RGB | MIPI |
| Driver IC | ST7272A | JD9852 |
| Viewing Angle | Free Viewing Angle | Free Viewing Angle |
| Touch | Capacitive Touch Panel (CTP) | No Touch Panel (No TP) |
| Temp Range | -30°C to +85°C | -20°C to +70°C |
| Brightness | 470 nits | 550 nits |
| Dimensions | 76.90 x 63.90 x 4.85 mm | 42.92 x 60.26 x 2.50 mm |
| Active Area | 70.08 x 52.56 mm | 36.72 x 48.96 mm |
| Features | Wide Temperature TFT | - |
