起源の場所:
中国の東guan
ブランド名:
Fangsheng
証明:
ISO9001:2015,IATF16949,RoHS,Reach,etc
モデル番号:
fs-tft
| Attribute | Value |
|---|---|

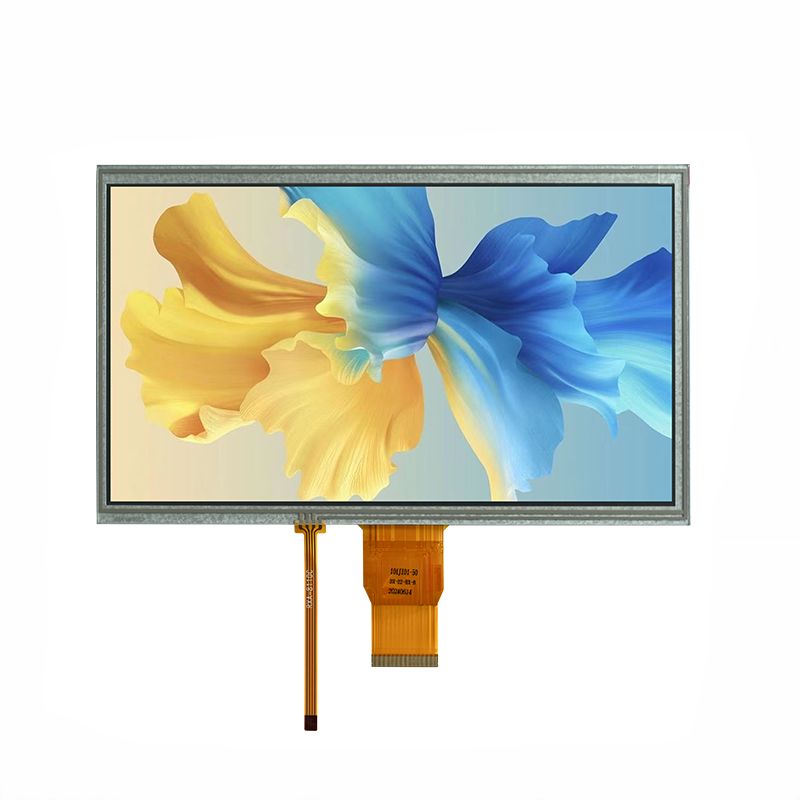

| Product Name | Custom 0.96-10.1 Inch High brightness LCD module MCU LVDS Interface Industrial TFT display |
| Size | 0.96-10.1 inch (Custom) |
| Interface | SPI/RGB/MIPI/LVDS, etc. |
| Resolution | Mini 80x160, up to FHD 1920x1080 |
| Custom | PFC, CTP, Cover glass, etc. |
| Application | Industrial Control, Medical Devices, Smart Home, etc. |
| Driver IC | ILI9806E-2C, ST5091+ST5625, etc. |
TFT LCD displays are widely used in industrial control systems, offering clear visualization of data, process parameters, and machine status. They enhance operator efficiency, enable real-time monitoring, and support touch control interfaces. Ideal for factories, automation lines, and industrial instruments, they provide reliable performance under harsh environments.
| Parameter | Specification / Options |
|---|---|
| Interface Type | MCU / SPI / RGB / MIPI / LVDS / UART |
| Brightness | 450 ~ 1000 nits |
| Resolution | Mini 80x160, up to FHD 1920x1080 |
| Display Size | 0.96 - 10.1 inch |
| Touch Panel | RTP or CTP are optional |
| Quality | Strictly Tested for Medical & Industrial applications |
| LCD Type | TFT IPS |
| Temperature (°C) | -20 ~ +70 |
| Viewing Angle | TN / IPS / VA / ADS / OLED |
| Customization | PFC, CTP, Cover Glass, BIL, Interface, FPC, Backlight, Open Frame, Touch Screen, Cover Glass |
問い合わせを直接私たちに送ってください.
