起源の場所:
ドングアン,中国
ブランド名:
Fangsheng
証明:
ISO9001:2015,IATF16949
モデル番号:
FS0350-2308

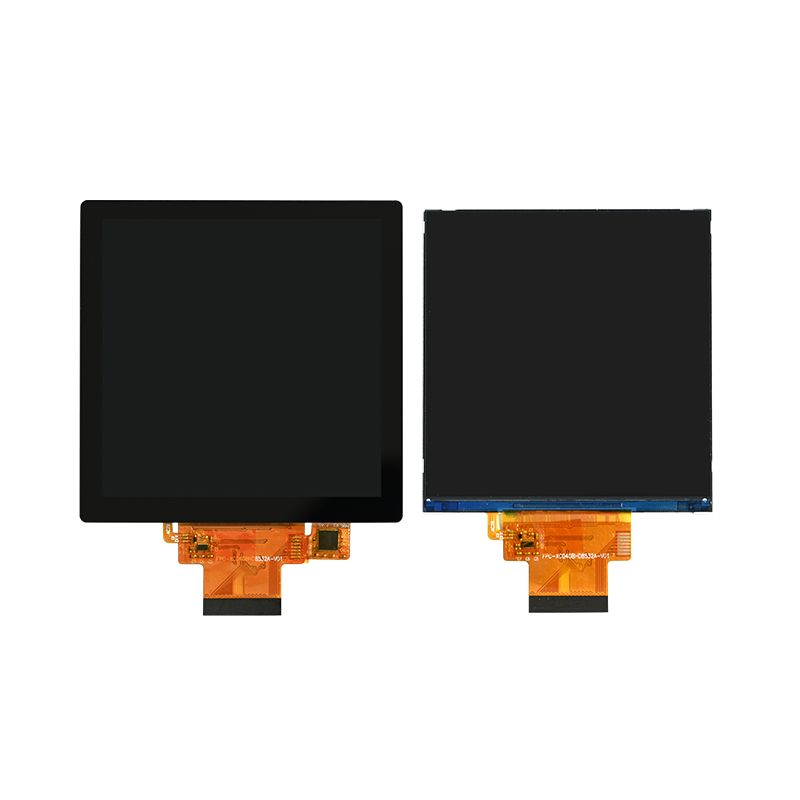

Fangsheng 4 Inch 480x480 Tft Lcd Display ST7701S TFT Display With RGB Interface
Feature about Fangsheng LCD:
High Resolution and Image Clarity
TFT LCDs offer sharp and clear image quality, suitable for detailed graphical displays.
Fast Response Time
They provide quick refresh and switching speeds, ideal for video and dynamic content.
Wide Viewing Angles (with IPS technology)
Advanced TFTs (like IPS panels) allow clear viewing from different angles without color distortion.
Low Power Consumption
Compared to CRTs and some OLEDs, TFT LCDs consume less power, especially in static displays.
Compact and Lightweight
Slim design and low weight make them ideal for portable devices.
Reliable Performance
TFT LCDs have good durability and stability under a wide range of operating conditions.
Cost-Effective Production
Mass production techniques have made TFT LCDs affordable for various consumer and industrial applications.
TFT LCD Display Specifications
| Parameter | Specification |
|---|---|
| Resolution | 480 × 480 |
| Color Mode | RGB |
| Driver IC | ST7701S |
| Viewing Angle | Free V.A |
| Interface | RTP |
| Operating Temperature | -30°C ~ 85°C |
| Brightness | 800 nits |
| Module Dimensions | 77.00 × 80.00 × 3.50 (mm) |
| Active Area | 71.86 × 70.18 (mm) |
問い合わせを直接私たちに送ってください.
