起源の場所:
中国の東guan
ブランド名:
Fangsheng
証明:
ISO9001:2015
モデル番号:
FHP4303FX01
TN STN FSTN LCD Screen | STN LCD Display | Custom Segment LCD Display Manufacturer

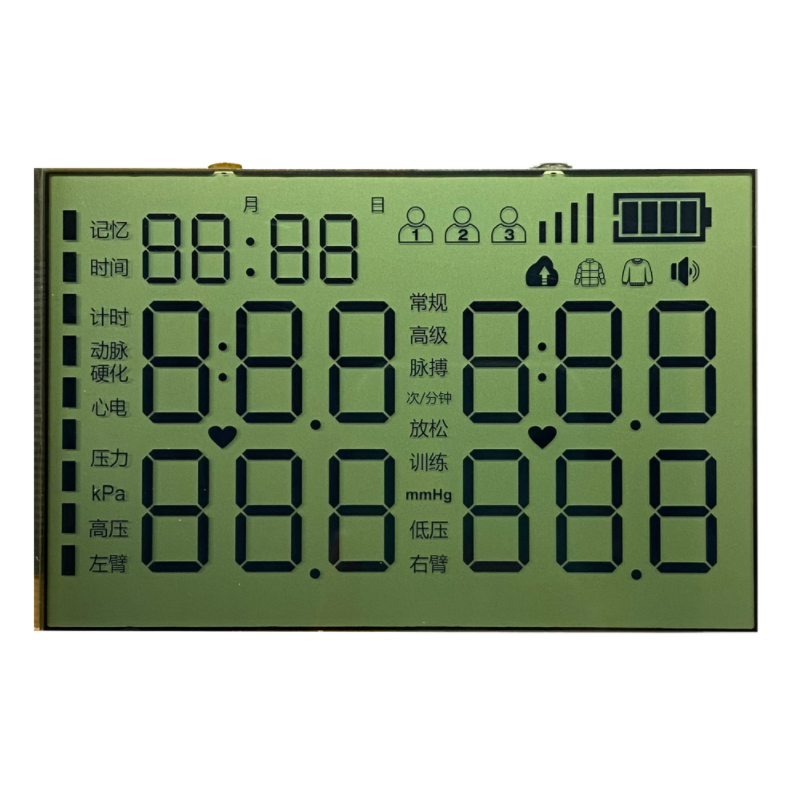

HTN LCD (High Twisted Nematic LCD) is widely used in medical equipment thanks to its high contrast, wide viewing angle, and low power consumption. These displays are commonly applied in thermometers, blood pressure monitors, glucose meters, and portable diagnostic devices, where clear and stable data visualization is crucial. Compared with standard TN LCDs, HTN LCD provides better readability under various lighting conditions, making it ideal for bedside monitoring and handheld medical instruments. Its reliability, durability, and cost-effectiveness also make it a preferred choice for long-term use in healthcare applications.
| Display Mode | Htn, positive Mode |
| Drive Condition | 1/4 duty 1/3 Bias |
| Viewing direction | 6 o'clock |
| Operating Temp | -10°C to +60°C |
| Storage Temp | -20°C to +70°C |
| Operating Voltage | 3.0V |
| Frame frequency | 64Hz |
| Front Polarizer | Transmissive, adhesive |
| Back Polarizer | Transflective, adhesive |
| Connectors | Zebra |
